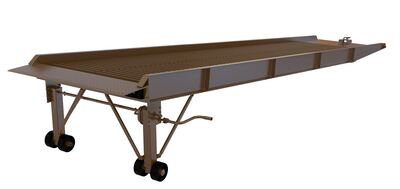

Steel Overlap Yard Ramp 72 In. x 30 Ft. 16,000 lb. Capacity Earth Tone

Item #: YR-16-7230
Price: $13,858.97
    The product is in stock Availability: In Stock
    Usually ships In 2-4 Business Days

    Quantity:

    About This Item

    Steel Overlap Yard Ramp 72 In. x 30 Ft. 16,000 lb. Capacity

    The portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one (1) person height adjustment. The standard features include: positive traction open steel grating, safety locking chains, rubber bumpers and fork positioning loop. Painted neutral earth-tone brown. Includes landing gear and crank mechanism.

    • Steel side curbs prevent fork truck run-off
    • Overlap style lip with safety chains secures ramp to trailer
    • Open grating design allows snow, ice and rain to fall through
    • Manual two-speed crank easily adjusts to different dock heights
    • There are Many Other Sizes available, Please contact us for additional sizes.

    Contact Us For Current Shipping Costs On This Item

    Using Steel Yard Ramps quickly load and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A service range of 45" to 62". Available in 30 foot of straight ramp or 36 foot overall length; 30 foot of straight ramp and 6 foot level off. Standard features include: 8-5/8" steel wheels, positive traction open steel grating, safety locking chains, 4" high steel safety curbs, rubber bumpers, 13 7/8" usable lip support edge, tow bar pocket and welded steel construction. Painted neutral earth-tone brown. All units must ship flatbed truck.

    • Steel side curbs prevent fork truck run-off
    • Overlap style lip with safety chains secures ramp to trailer
    • Open grating design allows snow, ice and rain to fall through
    • Manual hand crank makes height adjustments easy!
    • Contact us for aluminum versions of our products
