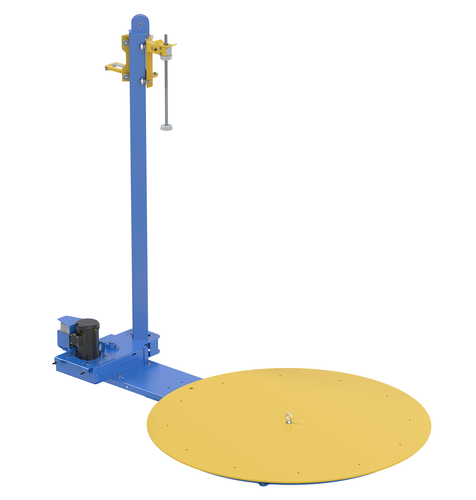

Steel Semi-Automatic Stretch Wrap Machine 70 In. Turntable Diameter 4,000 Lb
The semi-automatic stretch wrap machine design offers bigger carousel sizes with carousel rotation that is controlled by a foot switch. The power input has variable AC motor that allows adjustable deck speed and includes soft-start/stop. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.
- Stretch wrap design increases shipping productivity
- Simply depress foot pedal powers turntable
- Manual mast allows user to wrap the needed areas
- Steel construction provides a long lasting rugged use
Total Ship Wt.(lbs.): 985 (only 1 package) Size: 70"W x 107.125"L x 92.375"H Color: Yellow (Deck), Blue (Frame)
| Uniform Capacity (lb.): 4,000 | Turntable Diameter (in.): 70 | Wrap Height (in.): 81-7/8 |
| Turntable Height (in.): 2-3/16 | Maximum Load Diameter (in.): 84 | Voltage/Phase: 115/1 |
| Foot Switch Cord Length (in.): 96
Contact us for Current Freight Quote | R.P.M Variables: 3-12
|
